Features：
|
Specifications |
||
|
Model |
F-850E |
F-890E (coming soon) |
|
Power Supply |
AC230 50/60Hz |
AC380 50/60Hz |
|
Rated power（W） |
370 |
370 |
|
Motor Rotate Speed(rpm) |
1400 |
1400 |
|
Rated Current （A） |
3.5 |
2 |
|
Output Torgue（N.m） |
50 |
90 |
|
Self Lock Torgue（N.m） |
200 |
200 |
|
Output Shaft Rotate Speed(rpm) |
24 |
24 |
|
Ambient Temperature Range（℃） |
-25～+50 |
-25～+50 |
|
Noise dB（A） |
<70 |
<70 |
|
Limit Switch Type |
Electronic process |
Electronic process |
|
Maximum Door Area （ ㎡） |
30 |
40 |

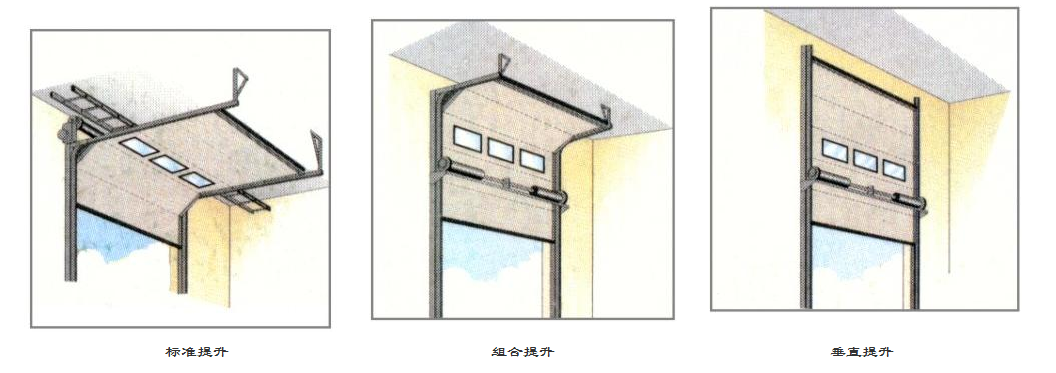

Standard Lifting Combined Lifting Vertical Lifting
